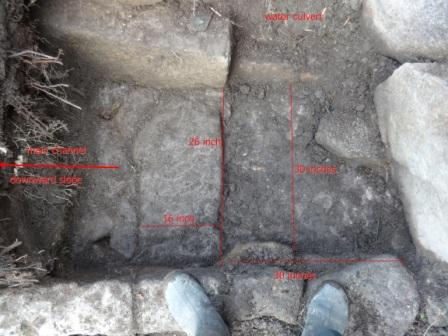

1. This shows dam at head of channel, which would have been timbered. It is here where the heavier tin crystals would have been collected.

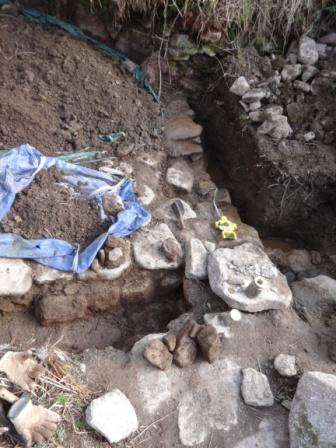

2. Shows main floor under soil heap, central gully running into settlement pit.

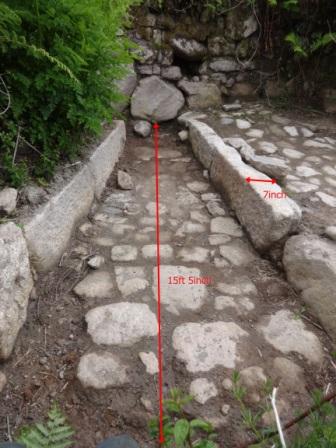

3. Self explanatory.

4. Tye channel
